Applications

Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.

Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc.

Materials can Work With: Organic glass, acrylic board (the paulownia,  lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.

Features

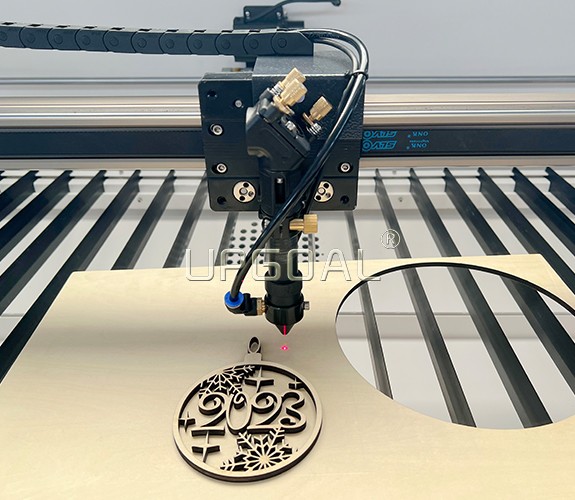

Laser Head with built-in red dot

Newly design, More in according with mechanical engineering. Safe and durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

Laser Tube

Adopted high quality Yongli 130W Co2 laser tube with built-in red dot,  long working time time and stable

Working Table

Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.

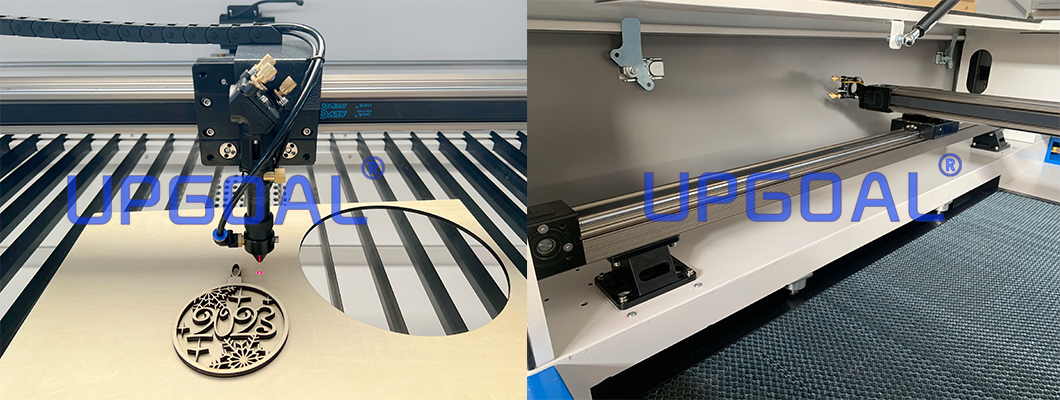

Knife Strip Table:  With oxidation treatment and low reflection ratio Ensured cutting quality

Auto Lifting Table for more thickness materials：Maximum Loading 50kgs with 200mm up-down distance.

Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

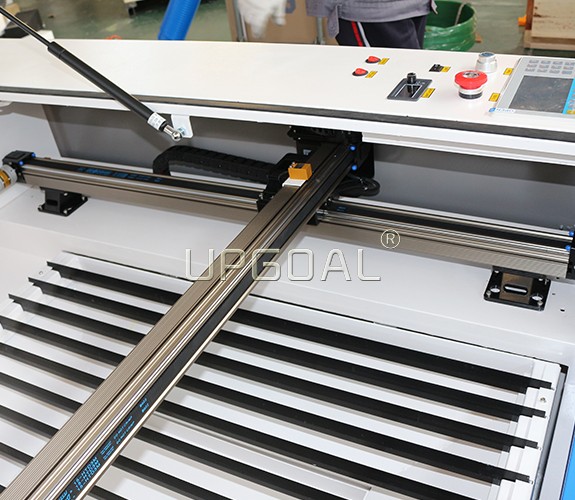

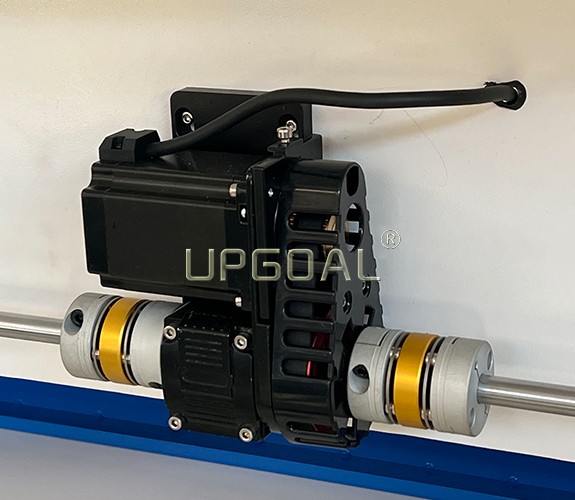

Motion System

Advanced modular structure, self-lubricating cleaning system, the coefficient of friction is low when the linear module reciprocates, achieving a silent effect. Light weight, low inertia, stable operation, fast response to acceleration and deceleration, and achieve the effect of noise reduction. Long service life, high rigidity material, guarantee high straightness, zero clearance run-in between the slider and guide rail of the linear module, guarantee its long service life.

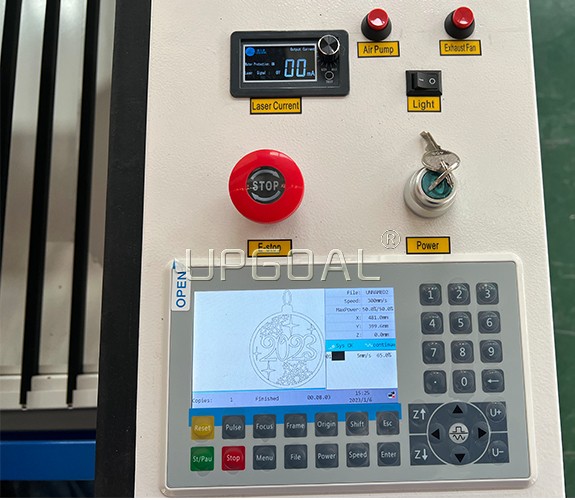

Operation System

Advanced USB port RuiDa RDC6445S DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.

Cooling System

Industrial chiller CW-5200(Teyu S&A), ensuring the laser tube long time continuous working.

Air filtration system

Air filter with 5 layers filtration, during the laser engraving cutting machine using, can filtering a mass of gas & smoke which are harmful to human health when engraving & cutting processing materials. Has the feature of low noise, flexible using, and cover small area.
